Ocular trauma is still a major cause leading to enucleation. This study aims to analyze the visual outcome, epidemiology and risk factors of open globe injury (OGI) at the University Hospital Aachen, Germany.
Material and methods
A retrospective analysis of patient records involving traumatic OGI treated surgically between 2005 and 2015 was conducted. Age, gender, cause of accident, ocular trauma score, best corrected visual acuity (BCVA) at presentation and after treatment as well as location of injury were evaluated.
Results
Of 2272 eyes with trauma, 102 patients with OGI were identified, of which 65% were male and 35% were female. Women were significantly older than men (p < 0.001). The most common cause of injury was domestic syncopal episodes (47%). Work-related injuries occurred exclusively in men in 8.8%. A total of 16% had no light perception (NLP) at presentation, 69% of which improved post intervention to hand movement or better. Endophthalmitis was observed in 4% of all cases. Enucleation was needed mostly due to rupture. Location of OGI, pseudophakia and initial BCVA are risk factors for poor final BCVA. Patients’ BCVA did not improve further after three surgeries.
Conclusion
Traumatic OGI still poses a challenge in terms of treatment planning and prognostic outcome. A rise in elderly patients with multimorbidity represents a secondary obstacle to treatment. Patients with initial NLP can be treated with moderate success. Nevertheless, risk factors and ocular trauma score are unable to provide definitive therapy decisions. OGI should be assessed case by case, taking risk factors for OGI into account. Treating physicians should consider the ethical and economic reasons with regard to whether a high number of surgeries with possible comorbidities is justified.
Hinweise
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Introduction
Ocular trauma is still a major cause leading to 37–60% of all enucleations, next to glaucoma, endophthalmitis and keratitis [1, 2]. It significantly impacts patients’ quality of life, career and self-perception. Ocular trauma has a broad variety of sequelae ranging from full visual acuity and minor aesthetic impacts up to primary or secondary enucleation [3]. Cataract surgery, myopia, higher age and female gender have previously been identified as ocular risk factors [4]. Eye injuries are commonly classified with the Birmingham Eye Trauma Terminology System (BETTS) [5] and the Ocular Trauma Score (OTS) [6] to evaluate the prognostic outcome [7].
Causes and epidemiology for open globe injuries (OGI) differ according to geographic region and population. Whereas in Asia work-related injuries account for 43–74% of all OGI [8‐10], the numbers in Europe and the US are 23–34% [10, 11] and 13% [3], respectively. Risk factors for poor outcome include age, endophthalmitis, vitreoretinal trauma, low OTS, no light perception (NLP), latency between injury and surgery and severity of trauma [12‐16].
Anzeige
The authors aimed to evaluate the demographics, causes and visual outcome of OGI in their patient cohort.
Materials and methods
The medical records of 2272 patients with eye trauma between 2005 and 2015 were reviewed. Subjects with contusion as well as patients receiving only conservative therapy were excluded. The medical charts of 102 traumatic OGI patients that underwent surgical treatment at the University Hospital Aachen, Germany, were retrospectively assessed. Age, gender, accident cause, initial visual acuity and complications were evaluated. Final visual acuity and missing long-term data were collected by surveying referring ophthalmologists in 2016. Best corrected visual acuity (BCVA) values were converted from decimal to logMAR and special importance ascribed to low vision values [17, 18]. OTS was derived from initial BCVA, rupture, endophthalmitis, perforating injury, retinal detachment (RD) and afferent pupillary deficit. Of those 102 patients, the OTS could be calculated in 88 patients. In 14, OTS was not derivable due to missing clinical data. The location of OGI was categorized as corneal injury (grade I), limbus parallel scleral injury (grade II) or radial scleral injury without or with eye muscle involvement (grade III and IV). Enucleation was not a standard procedure at presentation and was only considered after unsuccessful therapy, chronic pain or for cosmetic reasons.
In agreement with local ethics rules for this type of study, formal consent was not required but patient approval was obtained before surveying referring ophthalmologists.
Data is presented as mean ± standard deviation (SD) unless stated otherwise. This research is presented according to the Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines [19].
Anzeige
The incidence rate was calculated using PowerAnalyzer (trinovis GmbH, Hannover, Germany) with data provided by the German Federal Statistical Office (www.destatis.de). Population and patient numbers were used to calculate the annual incidence rate. Statistical analysis was done with IBM SPSS Statistics for Windows, version 24.0.0.0 (IBM Corp., Armonk, NY, USA). The statistical test was chosen depending on the type of variables and data distribution. Graphs were plotted with GraphPad Prism for Windows, version 6.01 (GraphPad Software, San Diego, CA, USA) or Microsoft Excel for Windows, version 2020 (Microsoft Corp., Redmond, WA, USA).
Results
Patient demographics
In 2016, the authors’ tertiary care center was within reach of 1,303,617 people. A total of 102 patients were identified with traumatic OGI over a 10-year period, leading to an incidence rate of 0.8 cases/100,000 people per year. Follow-up was 26.1 ± 29.0 months.
Gender distribution is presented in Fig. 1, with 65% being male and 35% female (Table 1). Men were significantly younger than women (46.7 ± 20.9 vs. 79.6 ± 16.3 years; t-test, p = 0.001).

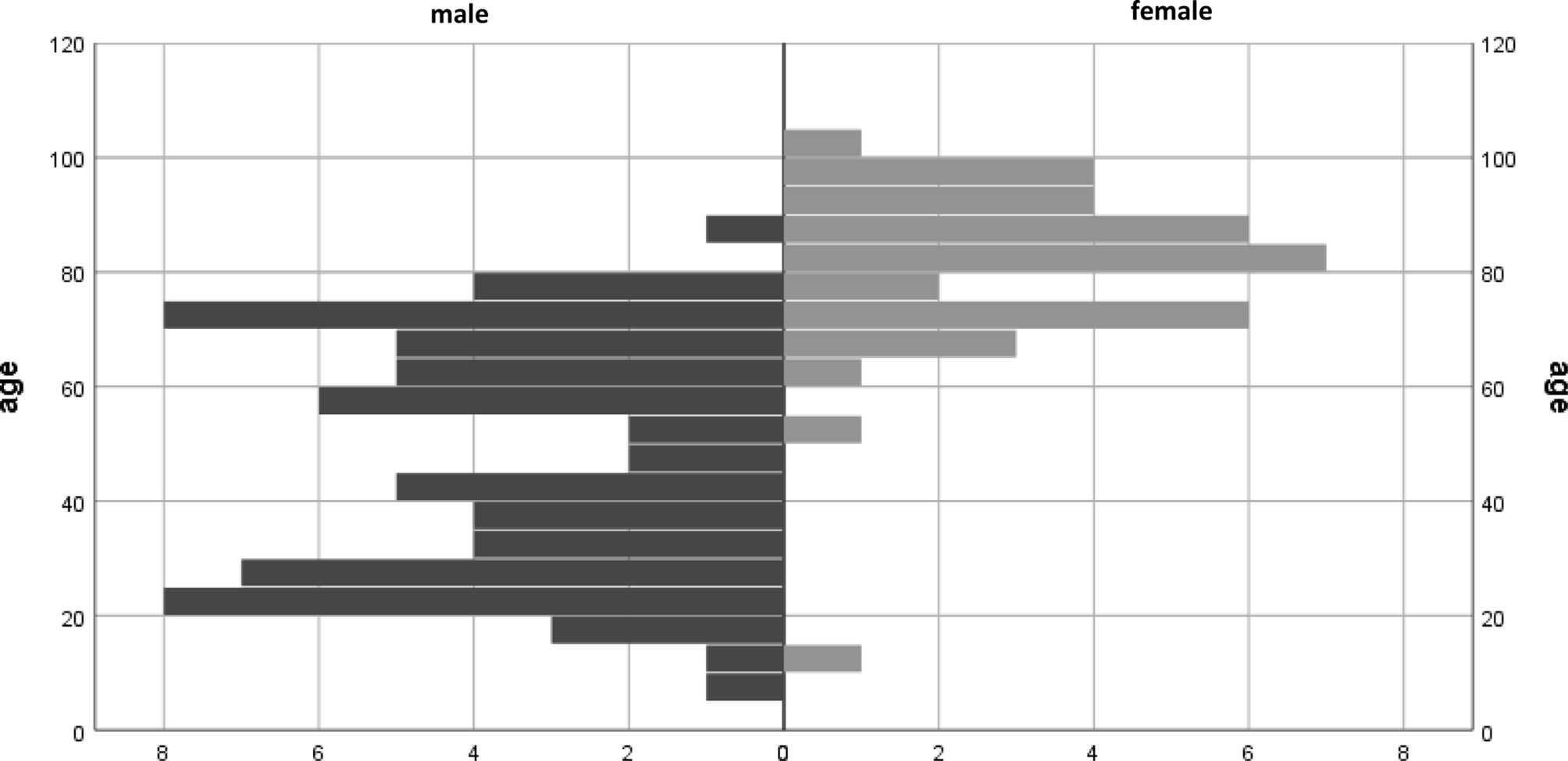

Fig. 1
Gender-based numbers of patients categorized by age
Table 1
Patient characteristics (n = 102)
Variables
Frequency (n)
Sex
Male
66
Female
36
Age
≤50
36
≥51
66
Type of injury
Rupture (all)
81
Rupture (blunt force)
40
Perforating/penetrating injury w/o IOFB
8
Penetrating injury with IOFB
13
Location of injury
Grade I
30
Grade II
28
Grade III
18
Grade IV
18
Lens status at presentation
Pseudophakic
26
Other
76
Type of IOFB
Metal
7
Wood
1
Glass
3
Other
2
IOFB intraocular foreign body
Table 2
Statistical analysis of visual outcome
At presentation
Last follow-up
p-Value
All patients
BCVA ± SD (logMAR)
n
2.16 ± 0.86
101
1.53 ± 1.1
102
0.000*
Treated with silicone oil
BCVA ± SD (logMAR)
n
2.59 ± 0.48
42
2.09 ± 0.85
42
0.000*
Pseudophakic at presentation
All other
p-Value
At presentation
BCVA ± SD (logMAR)
n
2.37 ± 0.75
26
2.09 ± 0.89
68
0.16 ns
Last follow-up
BCVA ± SD (logMAR)
n
1.96 ± 0.89
26
1.41 ± 1.13
72
0.03*
Penetrating injury by wood, plastic, glass
Rupture by blunt force
p-Value
Last follow-up
Mean BCVA ± SD (logMAR)
n
1.31 ± 1.15
52
1.80 ± 0.97
40
0.07 ns
Penetrating injury by metal
All other
p-Value
Last follow-up
Ø BCVA ± SD (logMAR)
n
0.55 ± 0.98
16
1.74 ± 1.01
76
0.000*
Tissue prolapse at presentation
No prolapse
p-Value
Last follow-up
BCVA ± SD (logMAR)
n
1.54 ± 0.81
76
1.26 ± 1.10
12
0.29 ns
n = 102, missing data results in smaller numbers
BCVA Best corrected visual acuity, ns Non-significant
*t-test, significant when p < 0.05
Table 3
Correlation of Ocular Trauma Score (OTS) to final best-corrected visual acuity (BCVA) and OTS to total number of surgeries
Final BCVA
No. of surgeries
OTS score
Correlation coefficient
−0.686*
−0.370*
p-Value
0.000**
0.000**
n
88
86
Spearman correlation, n = 102
*Negative correlation, **significant at p < 0.05
×
Most patients were injured due to accidental falling or syncopal episodes (47%). Common injuries were on a construction site or at work (22%; Fig. 2). Other individual causes were hooks, tension belts, fireworks, bursting firewood or iatrogenic injection. The most common perforating or penetrating items were metallic (16%) like nail and tool splinters, wooden (6%) like wood shavings and glass (14%) like broken bottles and shattered eyeglasses. Rupture injury was mostly due to blunt force (41%). Wood, plastic or glass caused similar poor visual outcome compared to injuries by blunt force or rupture (t-test, p = 0.07) (see Table 2).

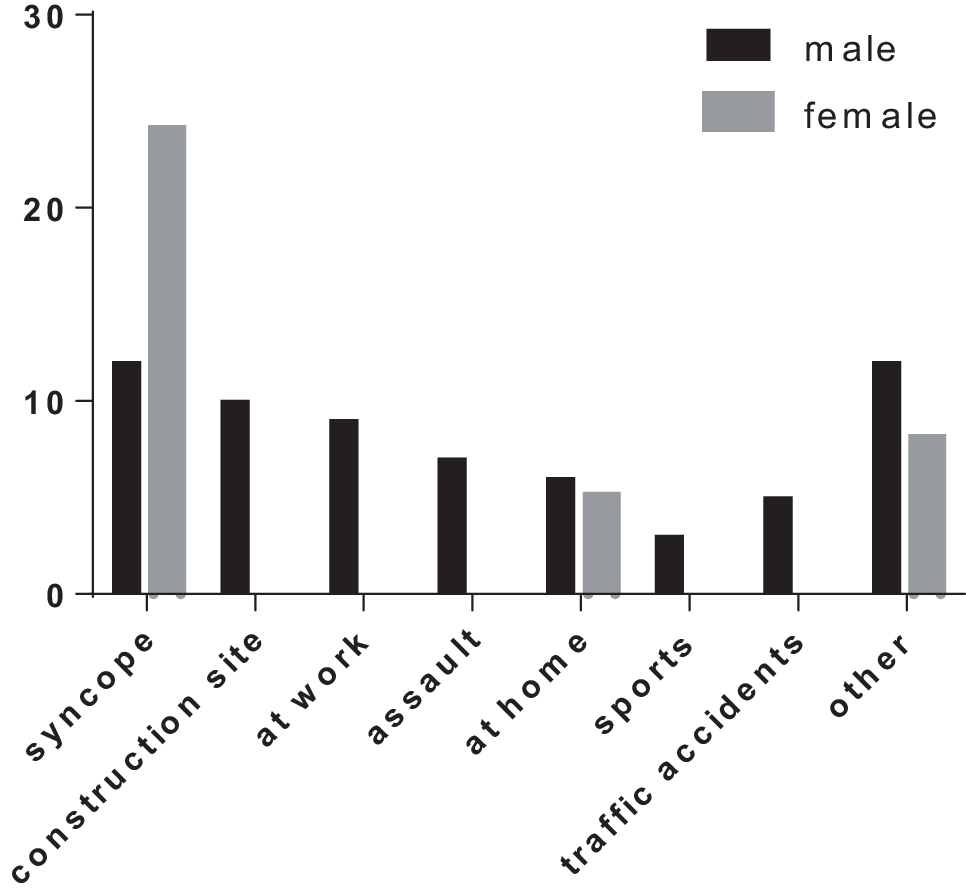

Fig. 2
Distribution of accident causes in percent
×
Location of open globe injury
The present data show a correlation between higher grade (grade III and IV) injuries to worse final visual acuity, a higher number of surgeries and retinal detachment (RD) (Spearman correlation: final BCVA: p < 0.0001; number of surgeries: p < 0.0001; RD: p < 0.0001) (see Table 2). In all, 26.5% of patients had pseudophakia at presentation with a mean age of 78.54 ± 10.2 years. Phaco incision site was a predilection site for rupture in only 10%.
Tissue prolapse
Prolapse of vitreous occurred in 25%, of iris in 32% and lens expulsion in 4.5%. Undefined prolapse was found in 25%. Of all patients, 11.8% had no prolapse. Vitreous prolapse led to RD in 46% of those patients and increased the number of surgeries by a factor of 18% compared to all patients. This resulted in a final mean BCVA of 1.54 ± 0.81 logMAR which did not differ significantly (see Table 2).
Outcome
Fig. 3 illustrates the correlation of initial to final BCVA. As can be seen, most patients improved with treatment, but 15 patients worsened (above the interrupted line). Initial mean BCVA improved from 2.16 ± 0.86 to 1.5 ± 1.1 (t-test, p < 0.000). Patients with pseudophakia at presentation had a significantly worse final visual outcome (t-test, p = 0.03), although their initial BCVA did not differ (t-test, p = 0.16) (see Table 2).

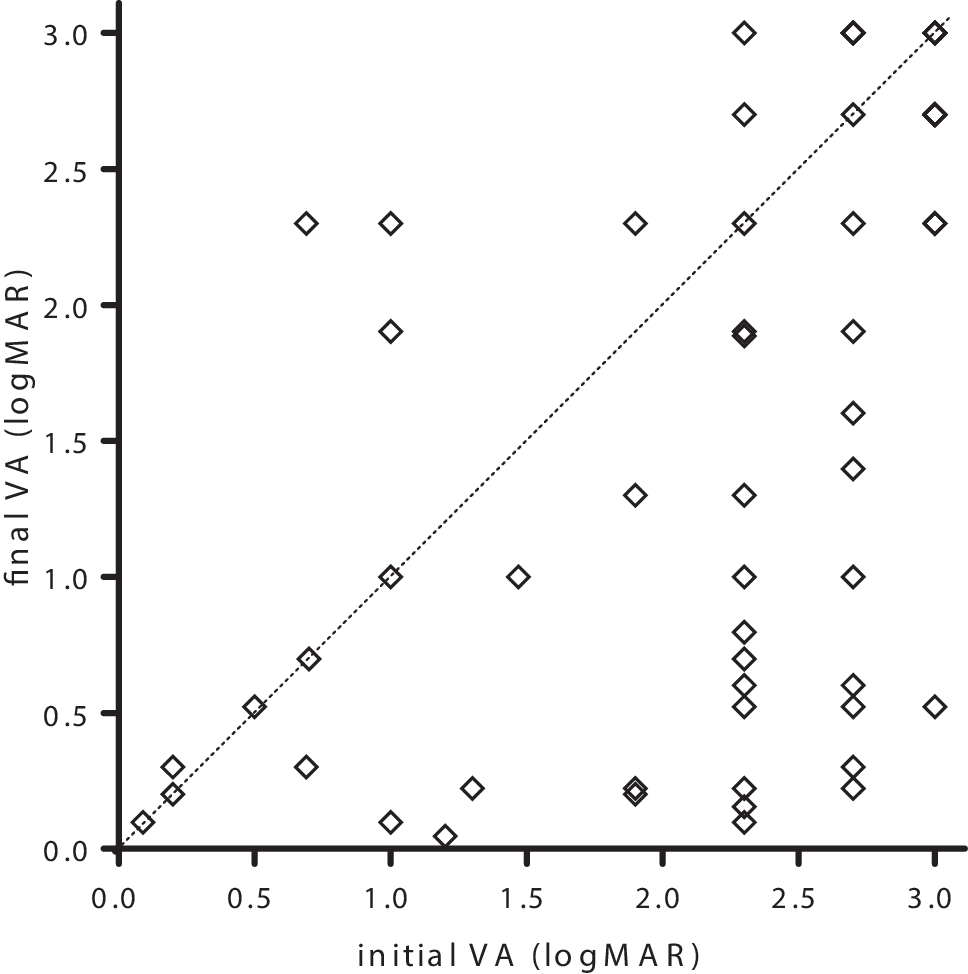

Fig. 3
Relationship between initial visual acuity to final visual acuity in logMAR. Dots below line show improvement, plotted dots above line show visual impairment
×
Initial NLP
Five out of sixteen (31%) patients had initial NLP and did not improve despite treatment, whereas 11 improved (69%) to counting fingers (CF) or hand movement (HM) (logMAR 2–2.1). One case did exceedingly well with an improvement of −2.48 logMAR. The mean number of surgeries was 3.0 ± 2.1. RD occurred in 69%, phthisis in 25% and enucleation in 19%. Three of four enucleations had initial NLP.
Anzeige
Final NLP
All 10 patients with final NLP had initial BCVA of HM or worse. Rupture was the cause in nine of 10 cases, and one case had an intraocular foreign body which resulted in endophthalmitis.
There was a correlation between OTS and final BCVA (Spearman, −0.86, p < 0.000). Of 43 patients with an OTS score of 1, only nine patients (22%) had a final BCVA of NLP.
Therapy
All patients received primary surgical repair and foreign body removal where needed. The mean number of surgeries was 2.85 per patient. In all, 70% of patients needed further surgical therapy other than primary surgical repair. Visual acuity reached a plateau after four surgeries (Fig. 4).

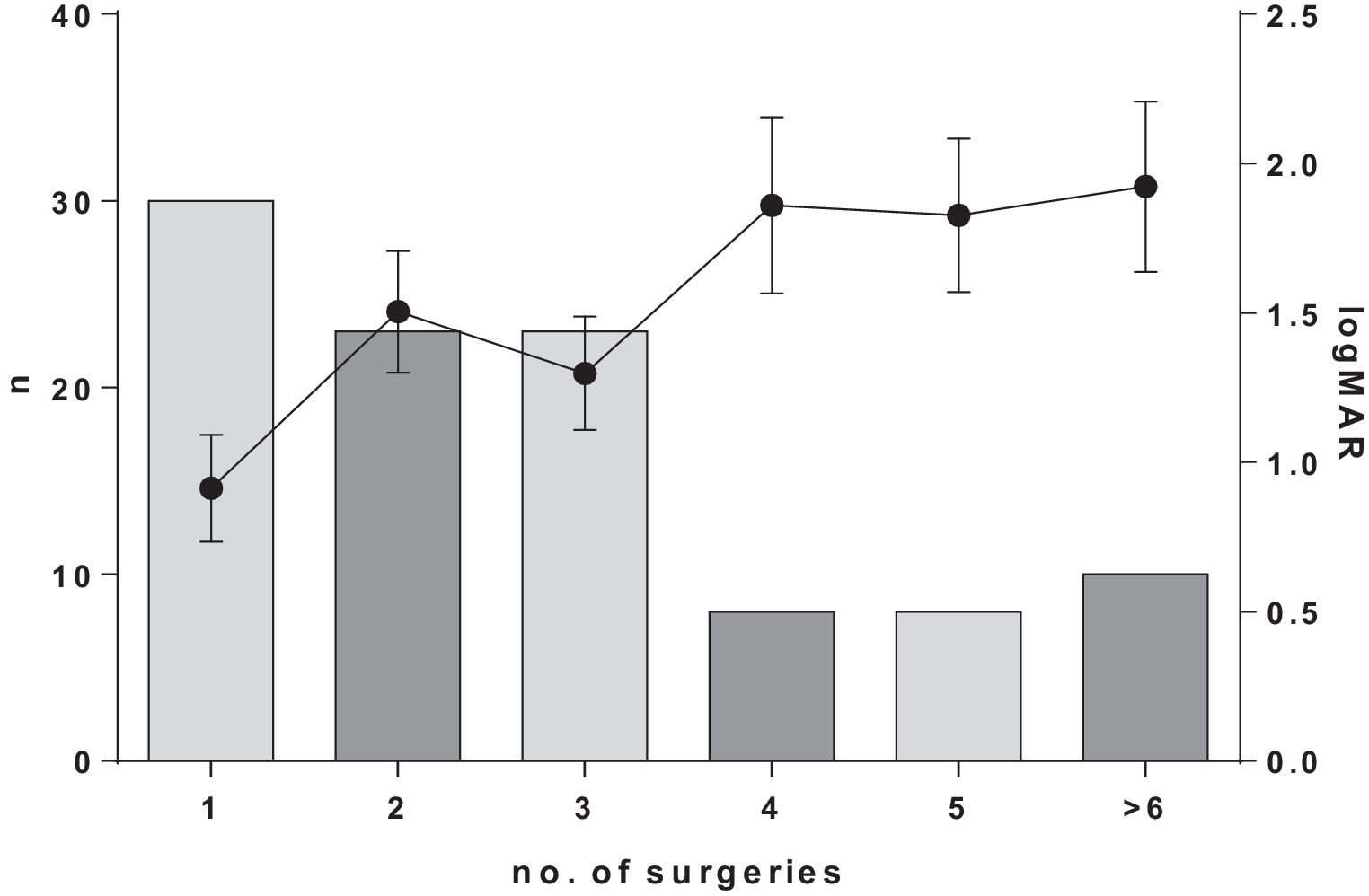

Fig. 4
Total number of surgeries performed per patient (bar) related to final mean best corrected visual acuity (±95% confidence interval)
×
Vitrectomy was performed in 55% of cases and silicone oil endotamponade due to RD was applied in 46%. Those patients receiving silicone oil endotamponade showed significant improvement in BCVA (t-test, p < 0.000). Four patients needed enucleation.
Anzeige
Patients remained aphakic in 36%, pseudophakic in 43% and phakic in 21% after treatment. There was a significant correlation between OTS score 1 and increased numbers of surgeries (Spearman, −0,370, p = 0.000) (see Table 3).
Endophthalmitis
A total of four cases (4%) with endophthalmitis were reported. All patients were treated with vitrectomy and intraocular antibiotics. Two patients resulted in NLP and one patient needed enucleation due to severe inflammation not amenable to treatment.
Sympathetic ophthalmia did not occur in the present study.
Discussion
This study aims to provide an overview of surgically treated OGI at the RWTH Aachen University Hospital and assess the current medical care there compared to the literature.
Anzeige
Epidemiology
The current study identified two age peaks for men: one between 20–40 years, which is usually working age and accounts predominantly for work and spare time injuries, and a second peak between 60–80 years. Women were affected almost exclusively above the age of 60 and mostly by syncopal episodes. Toride et al. described a similar age and gender distribution for Japan, a country with a comparable demographic and economic setting to Germany [20].
In contrast to the present results, previous papers as well as the literature from developing countries detected only a single peak for patients (10–50 years) and a higher male-to-female ratio [8‐10, 13, 21, 22]. For example, Kuhn et al. analyzed the United States Eye Injury database (USEIR) and discovered that 81% of all patients were male and that both genders were single-peaked (m: 20–60 years, f: 70–80 years). This might be because the USEIR includes data of military personnel, which are obviously younger in age. In an older study in Germany, Schrader also found 84% male patients (male:female = 5.9:1) and only 9% of OGI in elderly patients, which might reflect worse work safety standards 20 years ago on the one hand [11]. On the other, demographic change has also affected the incidence of OGI in elderly patients in Germany [23, 24]. To the best of the authors’ knowledge this is the first study to clarify that male predominance has decreased in recent decades (male:female = 1.8:1). Based on the data presented here, a shifting of the first peak towards a higher second peak for both genders can be expected. Thus, one can expect to see increasing numbers of older patients with less male predominance.
The authors’ annual incidence rate for hospitalized OGI (per 100,000/year) of 0.8 was significantly lower compared to 3.7 in the US [25], 3.1 in Israel [26], 6.0 in Sweden [10] and 12.6 in Singapore [13]. Patients’ economic status and educational level were not evaluated. Both factors might impact the low incidence rate found in the current study.
Follow-up times showed great variance as most patients were referred to the authors’ tertiary center only for surgical treatment, and data supplied by ophthalmologists were incomplete in several patients. Reasons for loss of follow-up were death, relocation or change of treating ophthalmologist.
Mechanism of injury
In the present study, penetration by metal items had the best final visual outcome (t-test, p < 0.000), which occurred mostly in men (87.5%). In previous studies, metal objects were the main cause of injury in 32.4–72.7% [27, 28]. Although metal items have been identified as the causative factor for posterior OGI in young men [16], former studies have also reported that penetrating injuries resulted in better visual results [27]. These findings suggest that visual outcome depends on the mechanism of injury as well as the material of IOFB. One possible reason might be that metal splinters tend to be sharp and perforate the cornea or sclera with less trauma. Depending on the velocity of the IOFB, the penetration depth results in varying damage. Although size of IOFB was not assessed in this study, previous studies have shown a strong correlation to final vision [27, 29].
Women were frequently injured after syncopal episodes, which occurred exclusively at home or during leisure time activities. An increase in domestic OGI was also noted by Schrader in 2004. Domestic injury rates were found to be as high as 71% [22, 30].
Work-related OGI occurred in 8.8% of cases, which is lower compared to other studies (34–49%) [8, 10]. The incidence of work-related injuries might depend on working safety standards and socioeconomic factors not evaluated here. Gender imbalance in work-related injuries was striking in the current study. The authors did not find a single female patient with a work-related injury. This imbalance was also previously found by others [8, 20].
The main mechanism of injury resulting in enucleation was rupture (75%). This was also shown by Savar and several other authors [11, 15, 27, 31].
Risk factors
The actual existence of risk factors for poor visual outcome in OGI patients has been questioned by Page et al. [12]. While many have acknowledged the existence of risk factors for poor visual outcome, others have rejected this.
In their study, the authors evaluated the following risk factors: location of injury, vitreous prolapse, pseudophakia at presentation and initial BCVA including NLP patients.
They found that radial scleral injury with or without eye muscle involvement had a significant impact on final visual outcome, which is in line with the previous literature [14, 15, 27].
Furthermore, patients with or without vitreous prolapse (25% vs 75%) did not differ in visual outcome, although the former needed more surgical procedures, including vitrectomy.
The role of pseudophakia at presentation has been discussed with contradictory results [27, 32]. While cataract surgery has evolved in recent decades, its leading role in eye ruptures has decreased due to the small self-sealing incisions used in modern cataract surgery from 40% of all OGI in 1985 [11] to 10% in the present study.
In line with the previous literature, the data presented here outline pseudophakia as a risk factor for poor visual outcome. However, as the percentage of pseudophakia and the number of syncopal episodes and multimorbidity increase with age, this result might be biased.
Many previous studies have shown a correlation between initial BCVA to final BCVA [7, 14, 25, 26, 28, 33]. However, the authors found a group of interest that had visual impairment after treatment (n = 14). In general, the impairment was statistically non-significant (t-test, p = 0.09). Nevertheless, they want to point out the highly individual course which may result in a worse visual outcome. Of those 14 patients, four had endophthalmitis, three had only minimal visual impairment, which may be due to error in measurement, two had phthisis and two had retinal detachment. Three patients received only primary reconstruction due to age (>88 years) and multimorbidity.
Ocular Trauma Score and no light perception
The OTS was introduced as an alternative to predict the visual outcome of OGI patients. The authors showed a significant correlation between OTS and visual outcome. However, effective prediction of the outcome remains uncertain. Kuhn et al. stated that OTS 1 has a 75% probability to have NLP as final BCVA [6]. In the authors’ dataset, only 22% of OTS 1 had NLP as final outcome. In addition, their data showed an improvement for 69% of all NLP patients up to a BCVA of 0.73 logMAR.
Therefore, they conclude that conventional risk factors and OTS are insufficient to guide whether or not to proceed with further therapy. They propose deciding on a case-by-case basis and performing therapy if socioeconomic circumstances permit.
In line with the authors’ results, Soni et al. found that NLP is a risk factor for poor visual outcome [34]. NLP is often associated with severe ocular tissue destruction, including the retina or optic nerve. The current patient cohort did surprisingly well with 69% improving up to CF or HM. Han et al. reported that 11.1% reached a final BCVA of light perception or better [35].
Therapy
Fig. 4 shows that after three surgeries, patients have no further improvement and reach a plateau vision of about 2 logMAR, which equals hand motion. Gursoy et al. found that number of surgeries did not have a significant effect on final BCVA [36]. Therefore, surgical procedures should be considered especially with regard to patient age, condition and risk of general anesthesia.
A prospective randomized study would be preferable, but might fail due to low numbers or inhomogeneous patient characteristics.
Conclusion
OGI is common in young working males and female seniors. The authors expect an increase in OGI for seniors in the future.
It is still difficult to predict the outcome, even if risk factors and OTS can be used to gain a general idea. The treatment of OGI remains a challenge that needs to be assessed individually.
