Organic-inorganic biohybrid films from wool-keratin/jellyfish-collagen/silica/boron via sol-gel reactions for soft tissue engineering applications

Wool samples were provided from a local farm in Çanakkale, Türkiye. Rhizostoma pulmo, commonly known as the barrel jellyfish, was caught in the Dardanelles (Abydus), Çanakkale, Türkiye. Sodium hydroxide (NaOH, 98%–100.5%, pellets), sodium sulfite (Na₂SO₃, anhydrous), TEOS (reagent grade, 98%, TEOS), hydrochloric acid (HCl), boric acid (H₃BO₃, ⩾99.5%), acetic acid (99.8%–100.5%), pepsin (powder, slightly beige, 500 U mg⁻¹), 2-(N-morpholino) ethane sulfonic acid (MES, ⩾99%), N-hydroxysuccinimide (NHS, 98%), N-(3-dimethylamino propyl)-N'-ethyl carbodiimide hydrochloride (EDC, 8.00907.0025), ethyl alcohol (⩾99.5%, EtOH), proteinase K from Tritirachium (lyophilized powder, ⩾30 units mg⁻¹ protein), were purchased from Merck (Germany).

Collagen derived from jellyfish was extracted according to our previous studies with a moderate modification [17, 18]. Keratin was also extracted from wool using a sulphitolysis reaction previously reported by our group [12]. The extraction steps of PS-JFC and WK are given in figures 1(A) and (B), respectively, and the relevant protocols are outlined in the supporting information file (SI-1 and SI-2).

Zoom In Zoom Out Reset image size

WK and PS-JFC were extracted in our previous studies, and biochemical characterization, such as sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE), amino acid content analysis, etc, was carried out in detail. Since protein extracts obtained through the same method were used in our current study, the mentioned analyses were not replicated. However, a Lowry protein assay was conducted to determine the protein content of WK and PS-JFC extracts. Ellman's assay was also performed to determine free sulfhydryl groups in WK extracts using Ellman's reagent. The analyses above and the required equations were detailed in our previous studies [12, 17, 18].

First, the reactive TEOS (rTEOS) was obtained by slightly modifying the reaction conditions according to the study of Yuan and No [19]. Briefly, a mixture consisting of TEOS (1.1 ml), HCl (0.1 M, 0.125 ml), and Milli-Q water (0.816 ml) (Milli Direct-Q 3UV, 18 MΩ cm⁻¹ at 25 °C, Merck-Millipore, Germany) was vigorously stirred for 5 min in a glass vial at room temperature. Subsequently, the mixture was exposed to ultrasonic agitation at 45 °C for 10 min until a clear solution was achieved. The prepared stock solution was made daily, used freshly, and then stored at ambient temperature (figure 2(A)). Boric acid was dissolved in water at a concentration of 3% (w/v), and then the solution pH was adjusted to ⩾9.24 (equal or greater than the pKa of boric acid) by dropwise addition of 1 M NaOH to obtain reactive tetrahydro borate anions (figure 2(B)). PS-JFC was first dissolved at a concentration of 5% (w/v) in boric acid (pH ⩾ 9.24) by using an ultrasonic bath. An equal amount of WK (5% w/v) was added to this solution, mixing gently without foaming. To reduce brittleness and increase film flexibility, glycerol, a plasticizing polyol, was added to the protein solution at a concentration of 10% (v/v). To initiate the sol-gel reaction, rTEOS and protein solution were mixed thoroughly at 1:10 (v/v), respectively. The resulting mixture was left to rest at room temperature overnight to complete the sol-gel transformation and maturate the gel. The solid gel was then mixed with pure water at a ratio of 1:4 and exposed to ultrasound agitation until well-dispersion was achieved. A volume of 5 ml from this mixture was poured into round-shaped silicone molds. After the solvent was evaporated by an incubator set at constant temperature (40 °C) and relative humidity (RH) (60%), The produced soft films were cured at 110 °C for 2 h to extract films easily from the mold by eliminating excess glycerol (figure 2(C)). Finally, a transparent, translucent, and brownish organic-inorganic Si-B-WK/JFC hybrid film was achieved. Similar reactions were repeated for sol-gel reactions and film production after preparing 10% (w/v) of keratin and 5% (w/v) of collagen solutions in boric acid. Thus, Si-B-WK and Si-B-JFC inorganic-organic films were obtained as well. (figures 2(D) and (E)). The network structure of the formed inorganic-organic biohybrid films is given in figure 2(F). To improve mechanical properties, all inorganic-organic hybrid films were cross-linked for 2 h at room temperature by the EDC/NHS method, as described in our previous study [12]. The mechanism of the coupling reactions between keratin and collagen in the Si-B-WK/JFC organic-inorganic biohybrid network is also presented in figure 2(G). The coupling mechanism of NHS/EDC is also detailed in the supporting information file (SI-3, figure S1). The resulting films were washed with Milli-Q water under ambient conditions to remove any residue or excessive reagents. More durable and flexible biohybrid films (figure 2(H)) were stored in a humid environment as they could be more fragile, particularly at lower relative humidities.

Zoom In Zoom Out Reset image size

For the investigation of the chemical structures in the resulting hybrid films, attenuated total reflectance Fourier transform infrared spectroscopy (ATR-FTIR), solid state ²⁹Si Cross-Polarization Magic Angle Spinning (CP-MAS), and ¹¹B MAS nuclear magnetic resonance (NMR) spectroscopy and x-ray diffraction (XRD) analysis were carried out. Brunauer–Emmett–Teller (BET) and Barrett–Joyner–Halenda (BJH) methods were conducted to determine the total surface area of solid biohybrid materials. The thermal behavior of the samples was also investigated using a thermogravimetric analyzer (TGA 8000, Perkin Elmer, USA). Surface morphology and elemental mapping of hybrid films were investigated using scanning electron microscopy (SEM) and energy dispersive x-ray analysis (FE-SEM JFM 7100F EDS) JEOL, Japan). Related analysis methods can be found in the supporting information file (SI-4). Mechanical properties such as Young's modulus, strain at break, and ultimate strength were determined by applying a uniaxial tensile test of biohybrid films on a micromechanical testing device (UniVert, CellScale Biomaterials Testing) with a 50 N load cell. A biohybrid film with a rectangular shape in a wet form (width: 12 mm, length: 14 mm, thickness: 0.2 mm) was placed between the two jaws of the device, and the tensile stiffness of the sample was determined by applying a strain rate of 0.16 mm s⁻¹ until breaking occurred. Real-time images were captured using a tripod camera (HD 1080p, Logitech) at a frequency of 5 Hz throughout the measurement process. At the end of the measurement, the stress-strain curve, an essential graphical measure of a material's mechanical properties, was obtained by processing the force and displacement data. The calculation regarding Young's modulus values can be found in the supporting information file (SI-5, figure S2).

Striking a balance between resorption of the scaffolds and remodeling is crucial for tissue engineering applications. To track the resorption rate and the in vitro behaviors of the composite films, a degradation assay was conducted using protease treatment as previously described by our group [12]. Briefly, initial dry biohybrid films were weighed (m_i ) and soaked in Tris-HCI buffer (0.02 M, pH 8.0) containing preservatives (sodium azide 0.05%, w/v) and proteinase K (0.01%, w/v). Samples were incubated in the enzyme solution at 37 °C for 3 and 6 d. At the end of each time point, the samples were removed, washed, lyophilized, and reweighed (m_f ). The resorption rate was calculated using the equation given below:

$$\begin{align}{\text{Weight Loss }}\left( {{\% }} \right) = \left[ {\left( {{m_i}} \right){\text{ - }}\left( {{m_f}} \right){\text{/}}\left( {{m_i}} \right)} \right]\, \times \,{\text{100}}.\end{align}$$

Chicken in ovo CAM assay was conducted to examine the effects of inorganic-organic hybrid films on angiogenesis and biological activity. To this end, as applied in our previous studies [20, 21], freshly fertilized chicken eggs purchased from a local provider (Çanakkale, Türkiye) were cleaned, disinfected with ethanol, and placed vertically in the rotating tray inside an egg incubator (Brinsea Ovation 28 Advance Ex, U.K.). Eggs were then incubated at 37.5 °C and 60% RH while rotating every 120 min. On the third day of embryonic development (EDD3), an opening was created at the top of the egg. Sterile parafilm was placed over the newly opened window to prevent contamination or desiccation of the egg contents. The eggs were then incubated in the egg tray in a stagnant position until material implantation. The embryos' survival rates were checked daily. On EDD7, sterile samples were placed between the prominent veins on the CAM surface using a stereomicroscope (Stemi 305, Zeiss) with a digital camera (Axiocam 105 color, Zeiss). Macroscopic images of the grafted embryos were captured on EDD7 and EDD10. The images were analyzed using ImageJ 1.51j8 (National Institutes of Health, Bethesda, MD, USA) to measure the vascular density of a 1 mm imaginary boundary drawn around the material on the CAM surface. Angiogenic response was evaluated using the vascular index, which is obtained from the ratio of vascular density at EDD10 to EDD7. The experiment was terminated after all imaging processes were completed at EDD10. The materials were excised with the CAM by leaving a 1 cm space around them. The resulting CAM-material complexes were used for SEM and histological analyses (sectioning and routine hematoxylin and eosin staining). For this purpose, all necessary processing steps were carried out as described in our previous study [21]. Until the 15th day of their development, it is generally accepted that chick embryos do not suffer pain. Moreover, in many countries, they are not recognized as living animals before the 17th day of their embryonic development [22, 23]. Therefore, ethics approval is not required because all experiments were accomplished within 10 d.

Quantitative assays were performed in triplicate for all experiments. The data were presented in Microsoft 365 Excel as the mean ± along with the standard deviation of the variables. Variations between the groups were assessed using OriginPro^® 2023b (Origin Lab Corporation, MA, USA) software, employing a one-way analysis of variance followed by Tukey's test. When p-values were ⩽0.05, the difference between groups was considered significant statistically.

In our previous study [12], human hair keratin was extracted by sulphitolysis reaction, and the biochemical characterization of the resulting low molecular weight (Mw) keratin extracts was investigated in depth. In this study, sheep WK, which has structurally similar properties to hair keratin [24], was extracted with the same method. According to Lowry protein analysis, the WK content in the dialysate was 8.81 ± 0.10 mg ml⁻¹, and the yield based on dry weight was about 40%. As known, during the sulphitolysis reaction, the disulfide bonds in the keratin structure are cleaved, and bunte salt (cysteine-S-sulfonate anions) and cysteine-thiol (cysteine-SH) are formed [25, 26]. A small number of reactive-SH groups can contribute to gelation by forming hydrogen bonds during the sol-gel reaction [27]. These groups were determined by the reactions with Ellman's reagent, and the amount was found to be 0.067 ± 0.009 mmol SH mg⁻¹ keratin. Findings regarding the content of keratin and free-SH groups are similar to our previous study [12]. Additionally, we performed SDS-PAGE and matrix-assisted laser desorption/ionization-time of flight (MALDI-TOF, Bruker Daltonics, Microflex LT, USA) analysis to determine the Mw distribution of keratin hydrolysates more accurately. As a result of our findings, we stated that keratin was obtained into small fractions of 2–3 kDa in size because of the highly alkaline environment used during the sulfitolysis reaction. However, many different-sized keratin fragments provide more active groups to trigger sol-gel reactions. In addition, the sulphitolysis method has the potential to be used in tissue engineering and cosmetic applications, as it is cheap, non-toxic, and has a short reaction time [12].

On the other hand, PS-JF content in the dialysate was 16 mg ml⁻¹, and the dry extract yield was also determined to be 93.5%, which shows a higher collagen recovery yield than our previous studies [17, 18]. The proposed modified method is ideal for PS-JF extraction with higher efficiency in a shorter time. Additionally, SDS-PAGE, hydroxyproline, and amino acid content analysis for the PS-JFC were performed and well-discussed in the mentioned studies.

During the inorganic-organic hybrid film synthesis carried out via sol-gel reactions, the concentrations of solutions containing SW, PS-JFC, and WK/PS-JFC mixtures were adjusted at a concentration of 10% (w/v). However, Si-B-JFC biohybrid films containing 10% (w/v) of collagen and 10% (v/v) glycerol exhibited fractured surface morphology during solvent evaporation and curing processes. Therefore, the optimum amount of collagen for relatively smooth and stable film synthesis was investigated and determined as 5% (w/v). Physiochemical characterizations were performed after completing the production and optimization processes of biohybrid films.

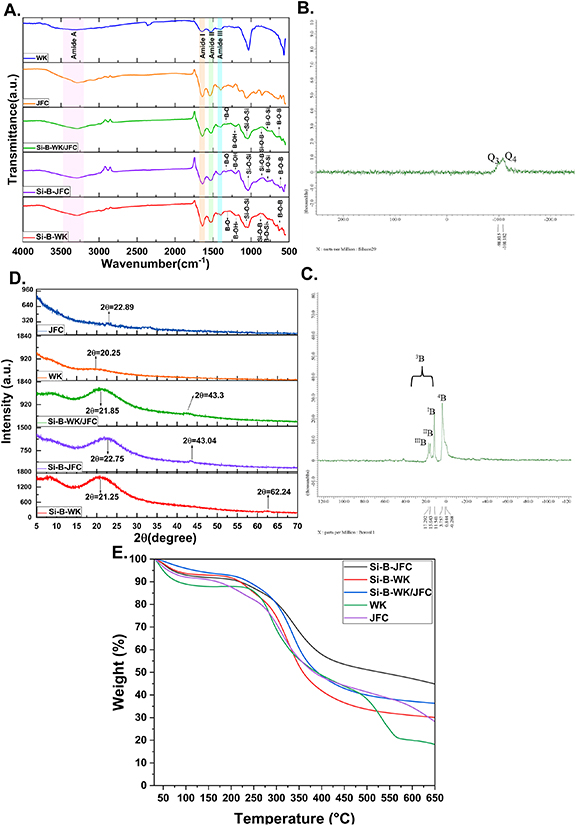

FT-IR, NMR and XRD analyses were performed for the structural characterization of all samples. The FT-IR spectra of the WK and PS-JFC extracts and organic-inorganic biohybrid films are shown in figure 3(A). The peak of Amide A associated with the stretching vibration of N–H bonds was found between 3200–3400 cm⁻¹. Prominent characteristic bands helpful in explaining the conformational structures of proteins and polypeptides are amide I, amide II, and amide III bands seen in the infrared spectra. Bands that fall in the 1600–1700 cm⁻¹ range relate to the Amide I, demonstrating the stretching vibration of the C=O bonds. Amide II band in the 1500–1600 cm⁻¹ range arises primarily from N–H bending and C–H stretching vibrations. The Amide III band, susceptible to the helical structure, in the range of 1200–1300 cm⁻¹, belongs to the C–N and C–C stretching absorptions and N–H and C–O bending absorptions [13, 17, 28]. In the spectra of the inorganic-organic biohybrid films, bands at 1090 cm⁻¹ corresponding to the Si–O–Si asymmetric vibration provide evidence of TEOS being bonded to the structure [29]. Peaks at 1345 cm⁻¹ and 1190 cm⁻¹ belonging to B–O stretching and B–OH vibration indicate that boron has been incorporated into the polymeric network. The weak bands at 880 cm⁻¹ indicate the presence of Si–O–B bonds, and absorptions at 810 cm⁻¹ and 637 cm⁻¹ are related to symmetric B–O–Si and asymmetric B–O–B bond vibrations, respectively [30, 31]. The appearance of new bands relating to boron and silicon compounds in the inorganic-organic hybrids shows that sol-gel reactions were successfully carried out.

Zoom In Zoom Out Reset image size

Solid state ²⁹Si and ¹¹B NMR spectra of Si-B-WK/JFC hybrid films are given in figures 3(B) and (C). Three characteristic types of active centers, named geminal groups (Q₂; chemical shift δ = −91 ppm), free and bonded groups (Q₃; chemical shift δ = −101 ppm), and siloxane groups (Q₄; δ = −110 ppm), are identified in the ²⁹Si-CP-MAS NMR spectra of organic-inorganic hybrid molecules synthesized via sol-gel reactions [11, 12, 32]. The Q₄ characteristic peak belonging to siloxane bonds (Si(OX)₄, X = Si, and B) was observed at approximately −110 ppm [33]. The chemical shift at −98.815 ppm refers to the Q₃ peak resulting from Si(OX)₃OR (functional groups such as X = Si, R = –OH, –NH₂, –SH) bonds [11]. This peak mainly exhibits the Si–O–R bonds formed due to reactions between rTEOS and functional groups in the WK/JFC.

¹¹B MAS NMR spectra contain trigonal (BO₃ groups, ³B) and tetrahedral (BO₄ groups, ⁴B) boron species. A narrow peak, usually at 0 ppm, represents tetrahedral boron species (B-(OSi)₄) surrounded by silicon atoms. However, when the boron atoms in the ⁴B structure are replaced by silicon atoms, a chemical shift of 2–3 ppm is observed. Therefore, a distinct peak seen in the spectrum around 3.757 ppm corresponds to ⁴B-(2B, 2Si) or ⁴B (1B, 3Si) species [12, 32, 34]. The other three distinct peaks seen in the spectrum belong to ³B species. The different chemical shift values at 11.5 ppm, 15.6 ppm, and 17.29 ppm represent B(OSi)₃, B(OSi)₂OH, and BOSi(OH)₂ structures, respectively. As can be seen in figure 3(C), as the number of B–O–Si bridges increases, the chemical shift values of trigonal boron decrease. It can also be seen that as the chemical shift values increase, the silicon content in the structure decreases [12, 34, 35].

XRD analysis was carried out to elucidate the materials' crystallinity degree; the results are shown in figure 3(D). The amorphous peak at about 2θ = 20° belongs to the β-sheets structures in WK and PS-JF extracts [36, 37]. However, the characteristic peak around 2θ = 9° related to a-helix structures was not observed in the XRD pattern of the WK extracts. This might be explained by damage to the protein backbone and these structures during extraction [37]. On the other hand, the broadband centered at 2θ = 20–25° in the inorganic-organic hybrid materials patterns represents the amorphous structure of silica. Additionally, the peaks at 2θ = 43° and 62° are characteristic peaks that prove the incorporation of the boron in the structure [38].

Thermal analyses of WK, PS-JFC, and sol-gel based inorganic-organic hybrid films have been studied, and the resulting thermograms are given in figure 3(E). The mass losses seen in the curves of all samples at temperatures below approximately 100 °C indicate the removal of structurally bonded water. The thermal degradation curves of WK and PS-JFC are relatively similar and appear to lose about 80% and 60% of their mass weight, around 600 °C. Thermograms show that WK has a weaker structure than PS-JFC, as it undergoes more thermal degradation at the same temperature. This explains why the thermal stability of the Si-B-JFC composite film decreases with the addition of WK [17]. Furthermore, mass losses at 600 °C for Si-B-WK, Si-B-JFC, and Si-B-WK/JFC are 50%, 30%, and 40%, respectively. Compared to WK and PS-JFC extracts, the increased thermal stability of the inorganic-organic hybrid films produced is evidence of successfully incorporating the boron and silicon into the polymeric network through sol-gel reactions.

Specific surface area and porosity parameters of hybrid films were investigated using the BET and BJH techniques. The data in table S2 clearly shows that the Si-B-WK/JFC film had a larger surface area than the Si-B-WK film. Thus, the results uncover a more comprehensive interconnected porous network was formed with the incorporation of PS-JFC into the hybrid films.

A higher surface area is generally associated with superior wettability. This characteristic, in turn, promotes the initial stages of cell adhesion, proliferation, and differentiation [39].

Moreover, we compared the mechanical properties of the single-component films with their composite counterparts. Wet films were used for these analyses as the film is too brittle to be subjected to the tensile deformation tests. Uniaxial tensile tests were performed until the point of breakages as shown in figure 4(A), and the force-displacement data were recorded for each hybrid film.

Zoom In Zoom Out Reset image size

The tensile stress and Young's modulus of freestanding inorganic-organic hybrid films were measured. The results are shown in figure 4(B). As can be seen in the stress–strain curves, the ultimate tensile stress was 38.40, 257.99, and 282.36 kPa for the Si-B-WK/JFC, Si-B-WK, and Si-B-WK/JFC biohybrid films, respectively. The Si-B-WK/JFC biohybrid films displayed a noticeable increment in Young's modulus compared to Si-B-WK and Si-B-JFC. Strain at break percentage was also determined to assess the deformation behavior of the hybrid films (table S1). Based on the stress-strain curve, Si-B-WK/JFC film was considered the most robust as it exhibited a maximum stress value of 282.36 kPa and a strain value of 18.45% at the breaking point. Zuniga et al made the collagen/keratin multi-protein hydrogels and reported that the critical factor influencing the enhancement in mechanical strength of the composite material is the collagen concentration rather than keratin concentration [40]. Glycerol is a prevalent plasticizer in producing proteinaceous films, employed in concentrations of 15%–50% parallel to protein mass. Its role is to enhance film flexibility by mitigating intramolecular and intermolecular attraction forces, thereby facilitating the mobility of polymeric chains [41]. However, some studies on the effect of adding glycerol on the mechanical properties of keratin and collagen-based films have reported that as the number of glycerol increases, the tensile strength decreases while the elongation at a break increase [42, 43]. In the work presented here, Si-B-WK/JFC film exhibited lower mechanical properties than Si-B-WK film. Combining the results mentioned above, two possible explanations arise for this phenomenon. The first explanation is that the protein amount in the Si-B-PS-JFC film is halved (5% w/v), and the second explanation is the use of excess glycerol despite the low protein amount. A previously published work established that the marine source collagen film with 2% (w/v) of glycerol and collagen had the 200 kPa maximum tensile stress [44]. In another study, wool-sourced keratin film was fabricated without adding glycerol, and the maximum tensile stress was 486 kPa [45]. Considering the excess glycerol used in our study, the mechanical properties of our inorganic-organic hybrid Si-B-WK/JFC films containing collagen and keratin align with the findings from the mentioned studies. In addition, it can be said that incorporating -Si and -B elements in biohybrid films positively contributes to mechanical strength.

Biomaterials with suitable degradation rates are good candidates for regenerative processes. Tracking of degradation rates provides essential clues to predict the behavior of materials in vivo. To this end, the biodegradability of the inorganic-organic biohybrid films was determined by following a protease treatment for 3 and 7 d of incubation. Obtained results are summarized as a percentage of weight loss in table S2. The total weight loss of B-Si-WK, Si-B-JFC, and Si-B-WK/JFC inorganic-organic hybrid films were found to be 15 ± 1.15%, 57.21 ± 6.57% and 39.41 ± 2.53% on day 3, respectively. On the other hand, it was seen that the weight loss of the same hybrid films increased significantly after 7 d of incubation and the highest increase was in the collagen film, with a mass loss rate of 81.99 ± 2.52%. Increasing structural features, such as porosity, hydrophilicity, and total surface area in the biomaterials, increase the water uptake capacity, rendering the biomaterial more susceptible to hydrolytic attacks [12, 46]. Considering the relationship between increasing total surface areas and biodegradation rates of hybrid films, we can conclude that the results are consistent.

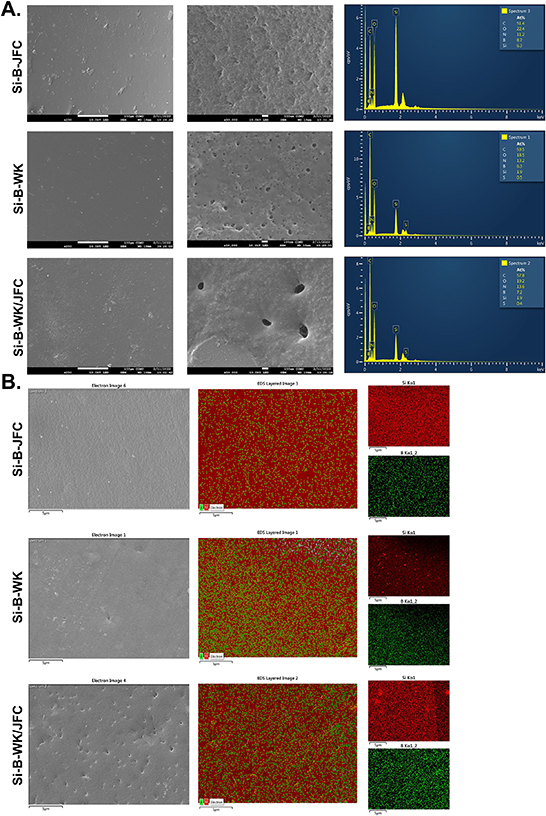

SEM-EDS technique was used to evaluate the surface morphology and elemental composition of the inorganic-organic hybrid films. SEM micrographs at 250x and 50000x magnifications are given in figure 5(A). All hybrid films displayed a rough appearance and uniform distribution over the surface. In the EDS spectrum, the atomic mass percentages of the elements on all hybrid film surfaces are similar regarding carbon, oxygen, and nitrogen, which proves proteinaceous content. Additionally, both Si-B-WK and Si-B-WK/JFC inorganic-organic biohybrid films also exhibit composition of 0.5% sulfur, indicating keratin content in the structures. Furthermore, boron and silicon were detected in the EDS spectrum of all the hybrid films, proving that the organic-inorganic network within the hybrid films successfully occurred through sol-gel reactions. On the other hand, the elemental mapping for all inorganic-organic hybrid films given in figure 5(B) shows the distribution of boron and silica atoms over the surface is homogeneous.

Zoom In Zoom Out Reset image size

The CAM assay is a well-known in vivo system to study the effects on both pro- and anti-angiogenic response and biocompatibility of materials for regenerative strategies and tissue engineering applications. Furthermore, a straightforward observation of angiogenesis was performed by macroscopic, microscopic, and histological evaluation of all biohybrid films using the CAM assay in vivo animal model (figures 6(A)–(D)). Stereomicroscopic images revealed that transparent biohybrid films seen on the CAM surface in EDD7 maintained their structural integrity although swollen slightly in the aqueous environment after the 3 d of incubation (EDD10).

Zoom In Zoom Out Reset image size

ImageJ software was used to calculate the density and index of newly formed vessels in a designated area around the biohybrid films. By using the binary images with a black-white scale, the blood vessel density index for the Si-B-WK, Si-B-JFC, and the Si-B-WK/JFC was calculated as 1.8 ± 0.092, 3.02 ± 0.041 and 2.89 ± 0.054, respectively. Based on the statistical analysis, there were no significant differences between the vascular index values of Si-B-WK/JFC and Si-B-JFC biohybrid films. However, the vascular index was increased significantly with the inclusion of collagen in the biohybrid structure. We reasoned that the Si-B-WK/JFC biohybrid films with a high surface-area-to-volume ratio provide more interconnections for cellular infiltration and vascular formation. Moreover, collagen, the primary component of the dermis, promotes growth and endothelial cell proliferation and migration [47]. This explains why a higher vascular index is observed in collagen-containing hybrid films.

SEM micrographs indicated that all biohybrid films supported blood cell adhesion, migration, and proliferation. On the other hand, microvascular networks were also observed on the surfaces of inorganic-organic biohybrid films containing collagen.

Hematoxylin and eosin staining were applied to investigate cellular structures in the CAM-biohybrid film tissue sections. The histological appearance revealed that the cell infiltration and development increased in the CAM-biohybrid film complex compared to the negative control groups. In addition, there was no evidence of acute or chronic inflammation, necrosis, or other unfavorable tissue in the biohybrid film-CAM complex, proving that the films were biocompatible [48].
