Neuromuscular electrical stimulation of the thighs in cardiac patients with implantable cardioverter defibrillators

Typical symptoms of severe congestive chronic heart failure (CHF) are dyspnea, edema, weakness, and reduced functional capacity of skeletal muscles, which can result in cardiac cachexia [1‐4]. Cardiac cachexia is a serious complication of CHF with a high morbidity and mortality, and is characterized by significant weight loss and muscle wasting [1, 2]. CHF-related muscle wasting is the result of an ongoing imbalance in the activation of anabolic and catabolic pathways [3, 5, 6]. This imbalance is caused by a series of immunologic, metabolic, and neuro-hormonal processes [2, 6, 7]. Efficient multidisciplinary care seems to be pivotal for disease management in this patient group [8].

Muscular strength of the thighs has been shown to be a predictor of long-term survival in CHF [1, 9, 10]. Patients with advanced CHF (New York Heart Association, NYHA, class IV) are generally excluded from active exercise to maintain muscle mass and functional capacity of skeletal muscle, namely endurance capacity and muscular strength [1, 10]. The physical treatment modality of neuromuscular electrical stimulation (NMES)—evoking muscle contractions by using electrical stimulation—is an established method to prevent atrophy of skeletal muscles [11‐13]. It can be seen as an alternative option to active endurance and strength exercise for patients who are not allowed (contraindication) or unable (immobilization) to perform active exercise [14‐17]. NMES leads to improvements in endurance capacity, muscular strength, and cross-sectional area of thigh muscles in patients with CHF, and has therefore been shown to be an effective option for “passive” exercise in these patients [17‐19]. NMES has been described to effectively substitute, promote, or complement active exercise and increase adherence to rehabilitation protocols, especially for end-stage cardiac patients [17, 20]. Nevertheless, despite its benefits for exercise capacity and quality of life, NMES is currently underutilized in patients with CHF [21].

However, about 20 percent of CHF patients carry active electronic implants such as implantable cardioverter defibrillators (ICDs). Therefore, there is an existing and remaining concern of whether NMES can be applied in these patients, due to fear of electromagnetic interference (EMI). EMI can cause oversensing and lead to inappropriate therapies in ICD patients, resulting in arrhythmias and/or painful shocks [22‐24]. These patients are generally advised to avoid exposure to electrical currents and electromagnetic sources, even though ICDs seem to be less sensitive to interference than pacemakers [25].

Pilot safety studies performed at the beginning of this century, designed to test the safety of NMES in patients with bipolar sensing by ICD lead systems, have shown that NMES treatment of knee extensor and flexor muscles seems to be safe and feasible in patients with bipolar sensing ICDs, providing that an individual risk is excluded before application [26, 27]. Nevertheless, several reports exist of inappropriate therapies/shocks due to interactions with electronic devices or electrical stimulation therapy leading to EMI [28‐30].

This review aims to summarize and update knowledge from the scientific literature concerning NMES of thighs in ICD patients.

A systematic review of the existing scientific literature was performed, including the electronic databases PubMed, MEDLINE, and SCOPUS. Electronic searches were conducted for the time period from 1966 to March 31, 2016. Trials with the keywords “Implanted Cardioverter Defibrillator”, “ICD”, “Neuromuscular stimulation”, “NMES”, “Functional electrical stimulation”, “FES”, and “Functional muscular stimulation” were extracted and considered for inclusion in the review. Furthermore, the combinations “Physical therapy and ICD and EMI” and “Physical therapy and ICD and Interference”, were also checked for inclusion in the review.

Studies were eligible for inclusion if they met the following criteria: original articles/safety studies, pilot studies, case reports, and reviews concerning the topic NMES in ICD patients were included. The restriction placed on language was that only English and German articles were included. The systematic literature search was performed separately by two independent researchers. Integration of their individual findings was supervised by two senior researchers [31, 32]. Author searches for key experts in the field were conducted for additional relevant articles. Furthermore, reference lists of each relevant publication were searched for additional information.

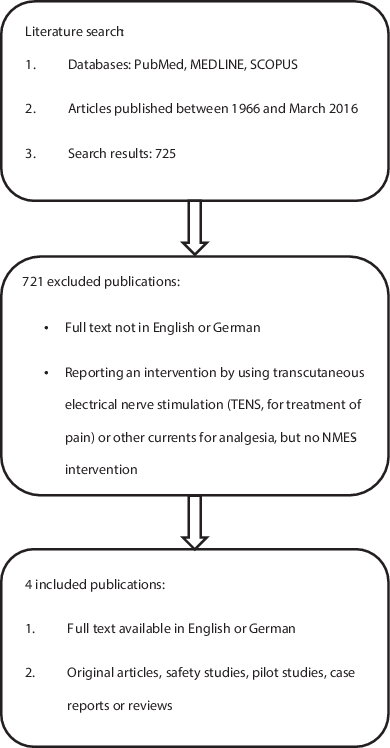

Using the described search strategy, a total of 725 publications were found and screened for eligibility by title and abstract. 721 were rejected as non-includable or duplicates, and four studies were selected for full-text analysis (Fig. 1).

Of these, four fulfilled the inclusion criteria of being:

Studies were excluded because of the following criteria:

Muscular strength of thighs has been shown to be a predictor of long-term survival in CHF [1, 9, 10]. As Parissis et al. have summarized, functional electrical stimulation of thighs and calf muscles is the only alternative mode of exercise in patients with CHF [18].

Literature about NMES in patients with ICDs is very rare. The reason for this seems to be that ICDs are generally seen as a contraindication for the use of NMES by the community. Nevertheless, NMES has been described to be an effective and safe treatment option for ICD patients provided certain safety precautions are considered [26, 27, 34]. In the scientific literature, there are only four articles describing the safety of NMES in patients with pectoral ICDs. Three of them showed the safety of NMES when applied to lower extremities in order to improve muscle strength and endurance capacity [26, 27, 34]. Crevenna et al. reported feasibility and safety of NMES in ICD patients if individual risks were checked prior to treatment initiation [26, 27].

In contrast, inappropriate electrode positioning for NMES can provoke disturbances of ICDs [33]. In one study, 2 patients autonomously applied the stimulation too close to the implantation site of the pectoral ICD, namely to the abdominal musculature, causing discharge of the ICD by signals in the VF zone [33]. Nevertheless, at that time, ICD programming had usually been very strict, e. g., short detection of VF and shock delivery at the first stage in the VF zone. Nowadays, prolonged detection programming and shock delivery only if antitachycardia pacing etc. fail may prevent many inappropriate shocks. Therefore, it might be doubtful that modern ICDs can be disturbed by NMES in the abdominal region. Nevertheless, further studies are needed to answer this question.

Unfortunately, the terms TENS (for pain treatment) and NMES are not clearly distinguished by all publishing authors. TENS is a non-pharmacologic treatment for pain relief, applied in the form of low-frequency (<12 Hz) or high-frequency TENS (50–100 Hz). Some case reports present discharge of pectoral or abdominal ICDs in patients during use of TENS for pain treatment in the lumbar, trapezoidal, and abdominal musculature, or chest or midback area [27‐30, 35]. In another case report, TENS of the sacral region provoked an ICD discharge, although the electrodes were 12 inches away from the ICD pulse generator [36]. In an exploratory study, 30 patients with implanted defibrillators (ICDs) underwent TENS treatment above the mammillae and the anterior superior iliac spine after programming the ICD to monitoring mode. Due to possible consequences of inexact sensing, the authors do not advise the application of TENS in patients with an ICD [37]. Pain management using electrotherapy, e. g., TENS, is substituted by pharmacological treatment and should be avoided in patients with ICDs.

Options to improve muscle strength and endurance capacity in patients with end-stage heart failure are rather limited. In most cases, patients with CHF are discouraged from performing active exercise to maintain muscle mass and functional capacity of skeletal muscle, namely endurance capacity and muscular strength [1, 11]. In Austria, NMES treatment of patients suffering from chronic diseases has a long tradition [17, 20, 26, 27, 38‐42]. Depending on the exercise goal, different commercially available therapy devices are used with direct or alternating current (biphasic) between 8–63.3 Hz, and, according to this, adjustable pulse durations and session length (usually 20–30 min).

This systematic review of existing scientific literature indicates that NMES treatment of thigh muscles seems to be safe and feasible in CHF patients with bipolar ICDs. Nevertheless, risk analyses to detect harmful events require a large sample size in order to arrive at valid predictions for the community, and such high powered and large safety studies are yet to be realized. We therefore conclude that NMES can be performed in cardiac ICD patients if 1) individual risks (e. g., pacing dependency, acute heart failure, unstable angina, ventricular arrhythmic episode in the last 3 months) are excluded by performing a safety check before starting NMES treatment and 2) “passive” exercise using NMES is performed only for thighs and gluteal muscles in 3) compliant ICD patients (especially for home-based NMES) and 4) the treatment is regularly supervised by a physician and the device is examined after the first use of NMES to exclude EMI. Nevertheless, further studies including larger sample sizes are necessary to exclude any risk when NMES is used in this patient group.
